ASMA503 series stenter

Now: Home>Products

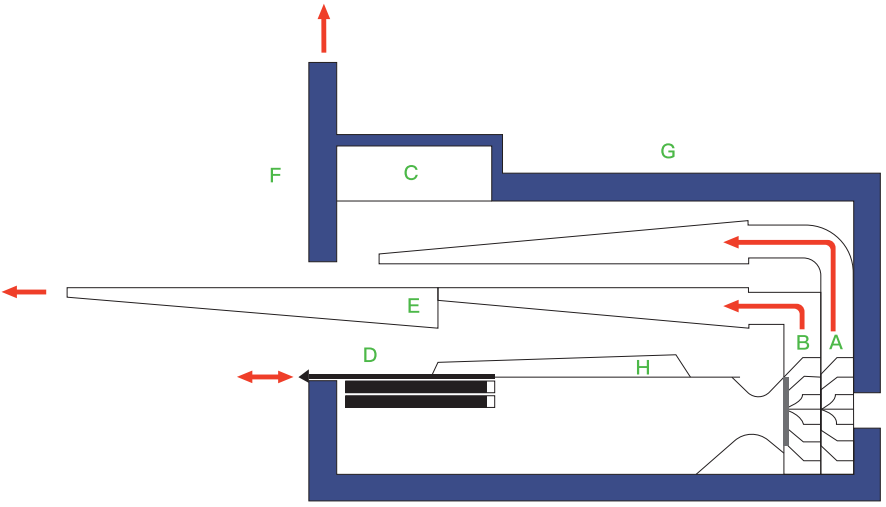

Structure of chamber

● A-B Independent upper and lower air flow thus the fabric balance can be easily adjusted from the operator panel (Twin-Stream)
● C Integrated exhaust duct
● D Lint filter can be cleaned from outside
● E Nozzles can be easily pulled out for cleaning
● F Pneumatic lifting doors
● G Energy conserving 150mm insulation
● H Return- air duct for the uniform return flow of the circulating air from the nozzle

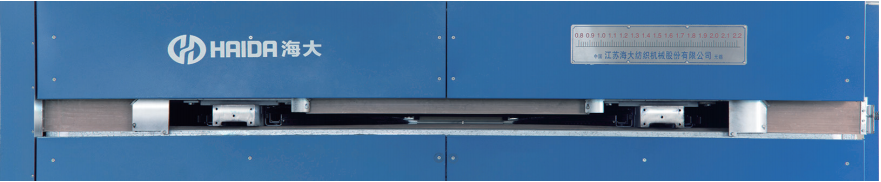

Cold air barriers in the fabric inlet and outlet

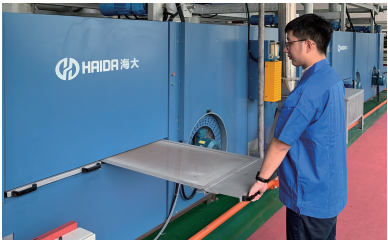

The circulation air filters can be easliy pulled out for cleaning during production

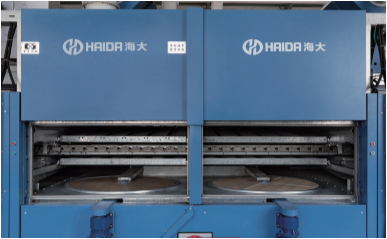

Pneumatic lifiting door, reduces space requirement increases the thermal efficiency

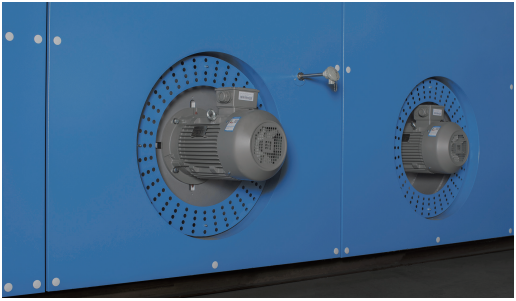

Circulating fan - twin stream
